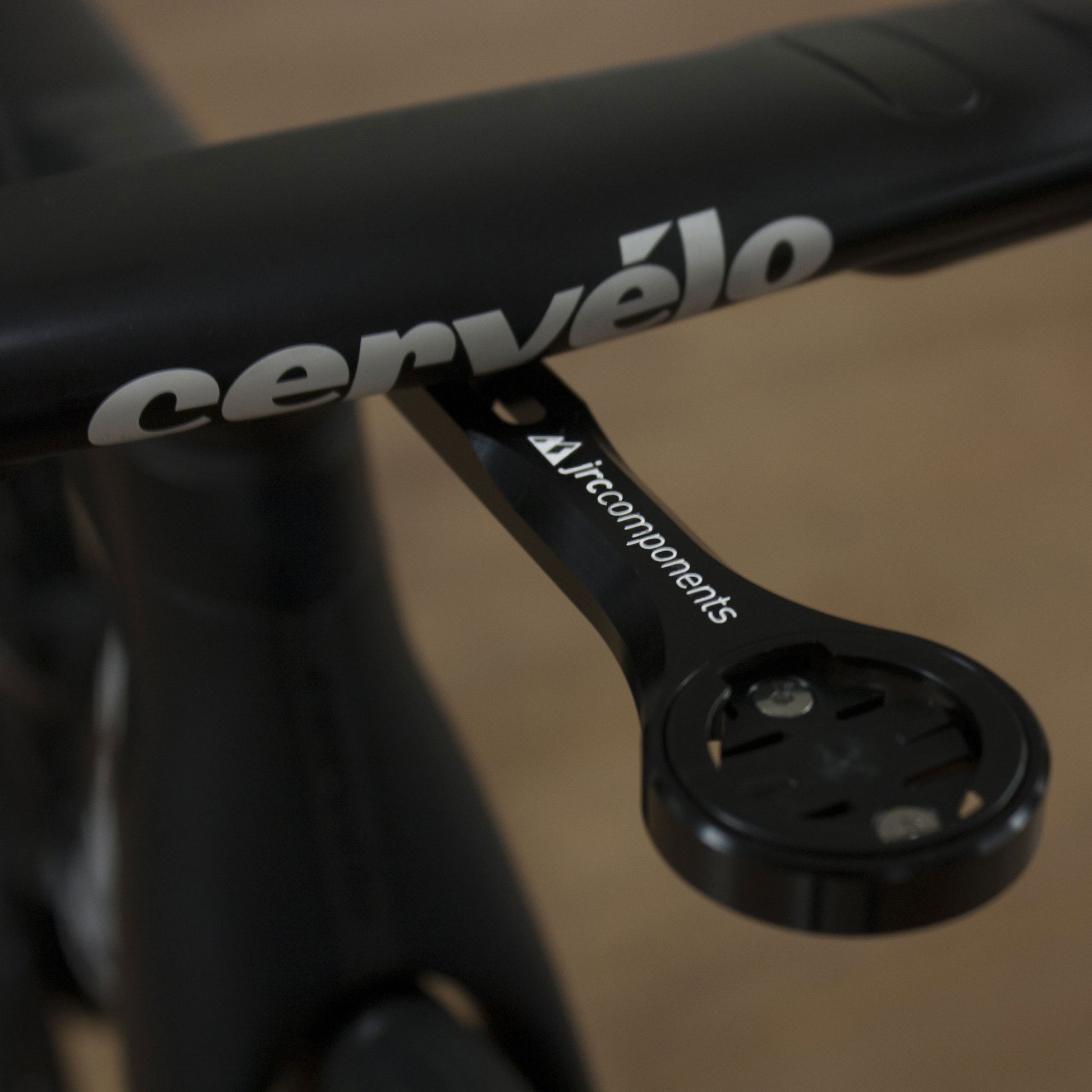

  • Black, lightweight, aluminium integrated amplitude bicycle handlebar mount, fitted to handlebar
  • Amplitude Computer Mount | Garmin - JRC Components
1 5

Amplitude Computer Mount | Garmin

Amplitude Computer Mount | Garmin

€36.95 EUR
€36.95 EUR
Sale Sold out
Tax included.

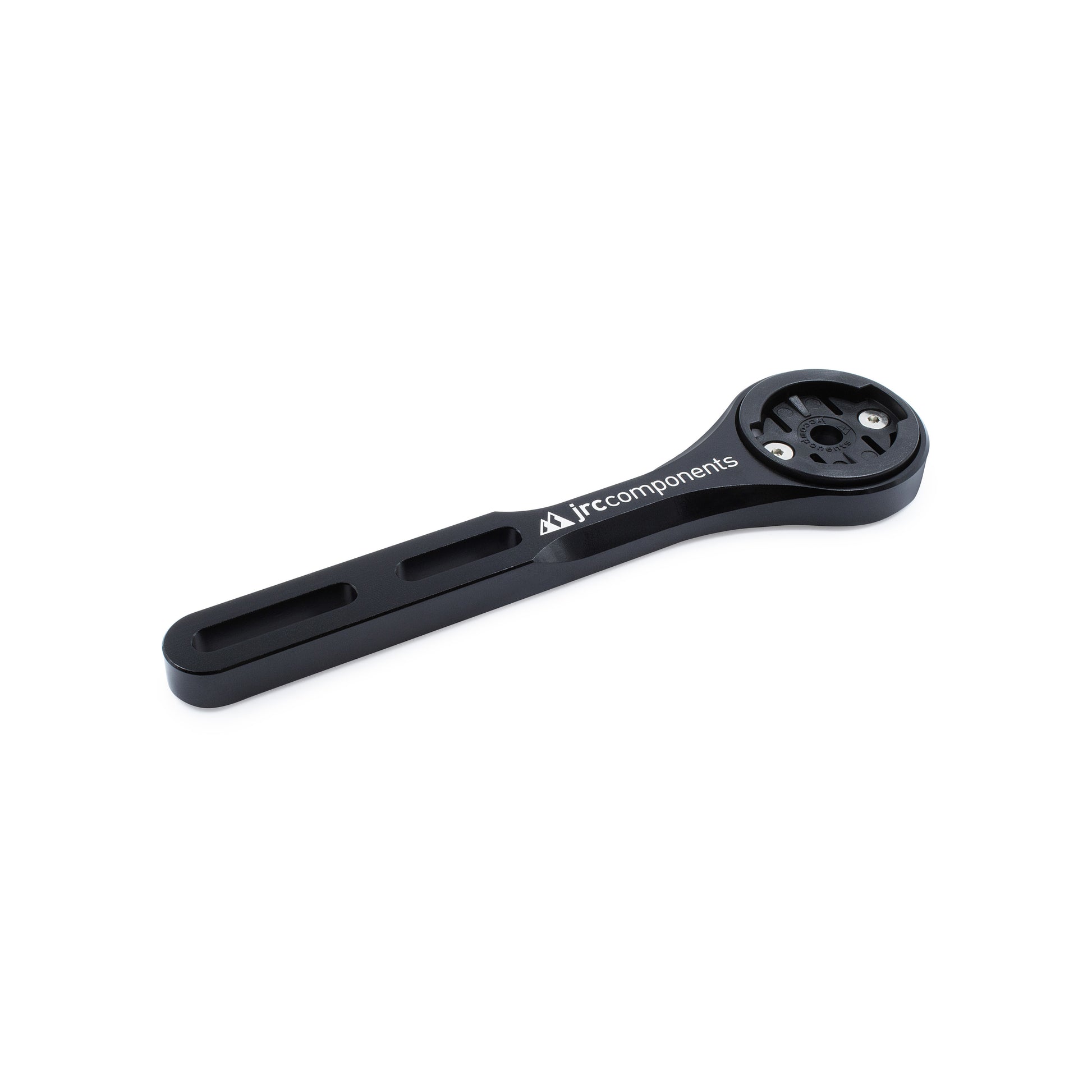

Colour: Black

Elevate your cockpit with the Amplitude Computer Mount, designed to perfectly fit a variety of integrated handlebars. Available in a range of 10 striking anodized colors, our underbar mount not only boosts your bike's performance but also offers a sleek, personalized aesthetic upgrade.
  • American Express
  • Apple Pay
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • Free Worldwide Shipping Over €80
  • 45 Day Returns
  • 24 Month Guarantee

Materials

-Fully Machined CNC 6061-T6 Aluminium body with a hard-wearing resin computer insert.

Compatibility

-Widest bolt spacing (centre - centre) : 55mm
-Narrowest bolt spacing (centre - centre) : 15mm
-Rear Bolt to Plastic insert (centre - centre) : 125mm
-This will enable compatibility with almost all integrated
handlebars which have in-line bolts to be equipped with all
standard GPS computers

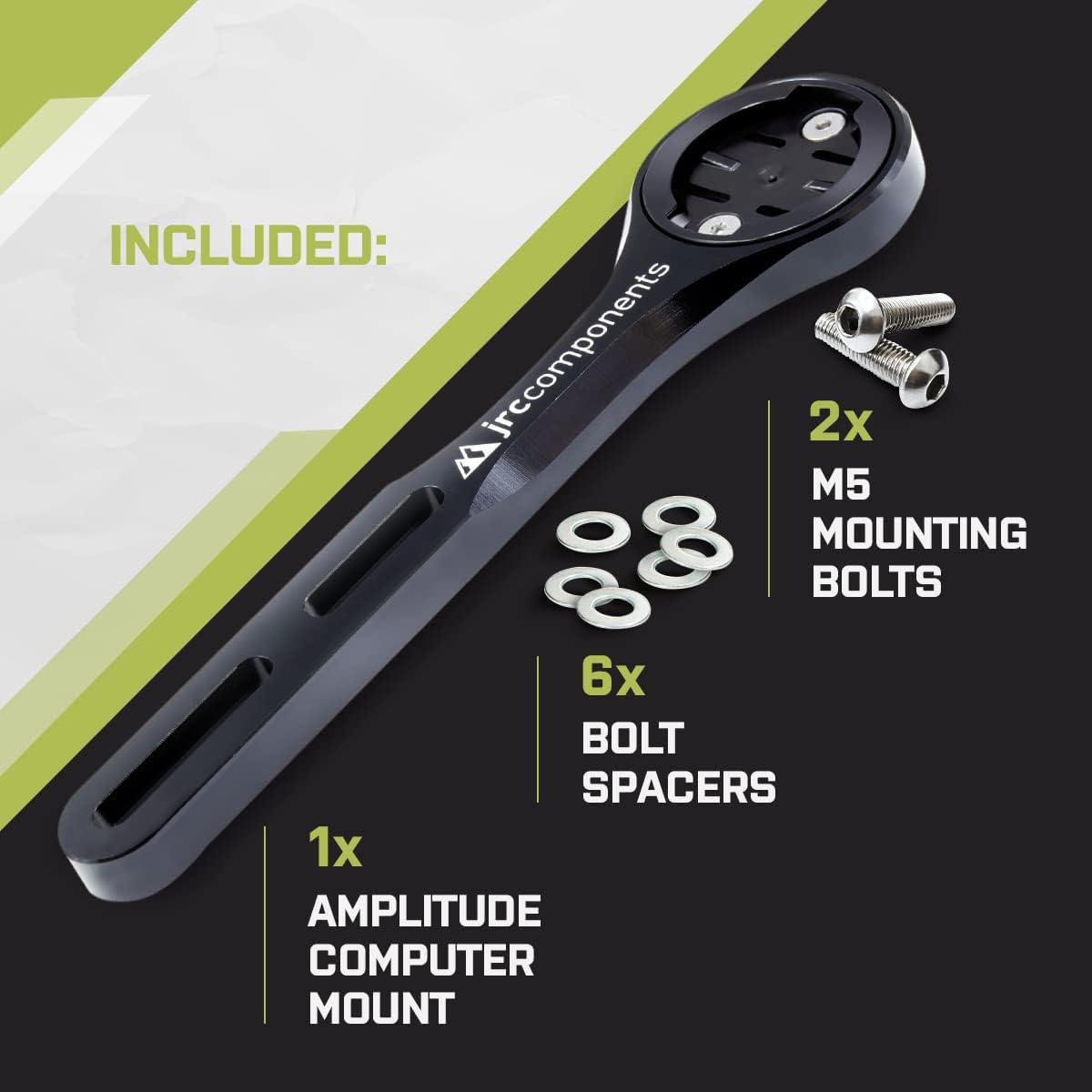

Included

-1x Amplitude Computer Mount

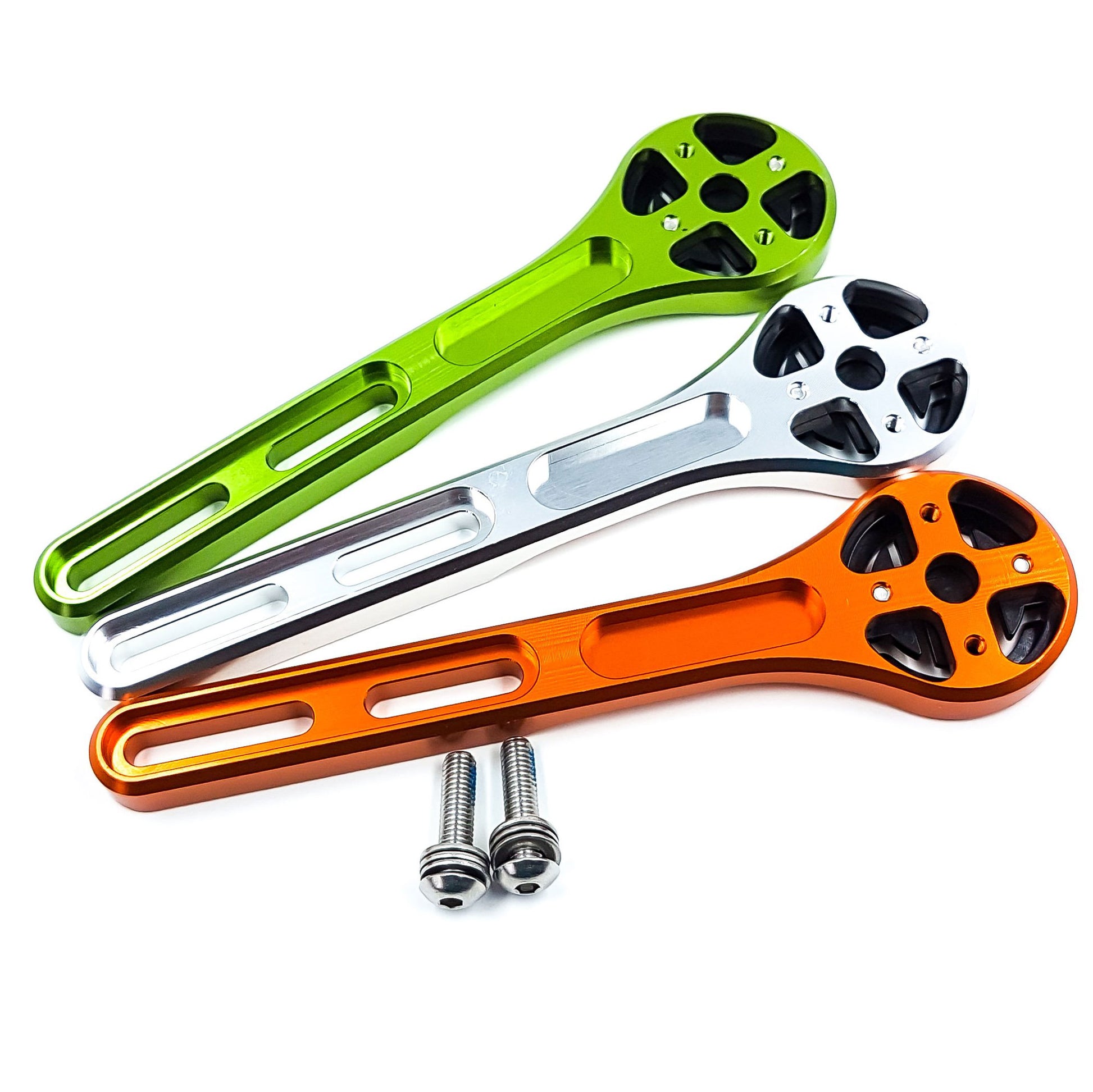

-2x M5 Mounting Bolts
-6x Bolt Spacers

Weight

-39g

View full details
Description
FAQs
Product Manual

Amplitude Underbar Computer Mount For Garmin

Integrated handlebar and stem Out Front Computer Mount, compatible with a range of Garmin Edge GPS Computers for perfect aerodynamics!

Spec:

  • Fully Machined CNC 6061-T6 Aluminium body with a hard-wearing resin computer insert.
  • Adjustable fore-aft to allow for the perfect positioning for your bar + computer combo
  • Low-Profile design ensures the computer sits near to flush with your bars for the perfect aerodynamic position.
  • Lightweight coming in at 39 grams

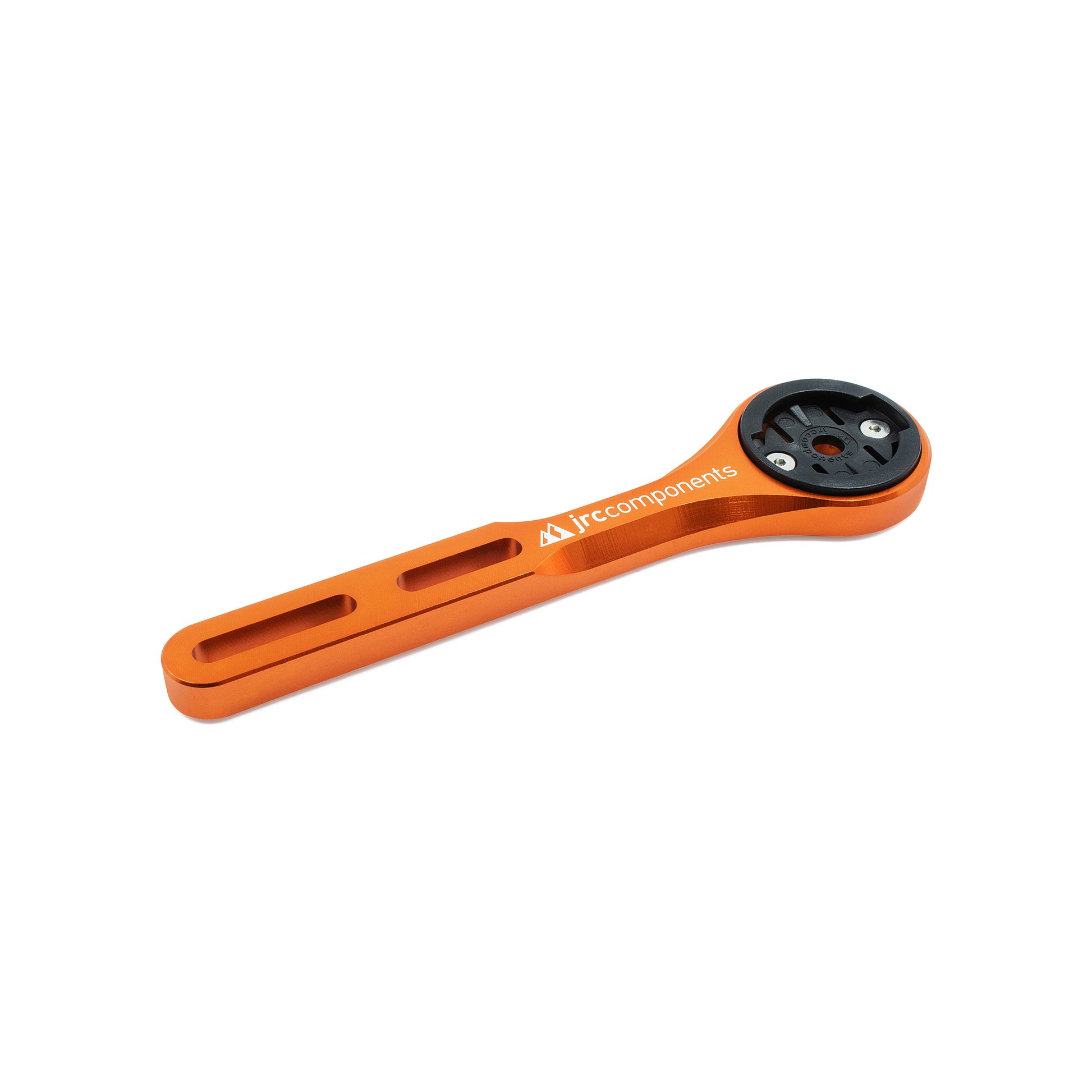

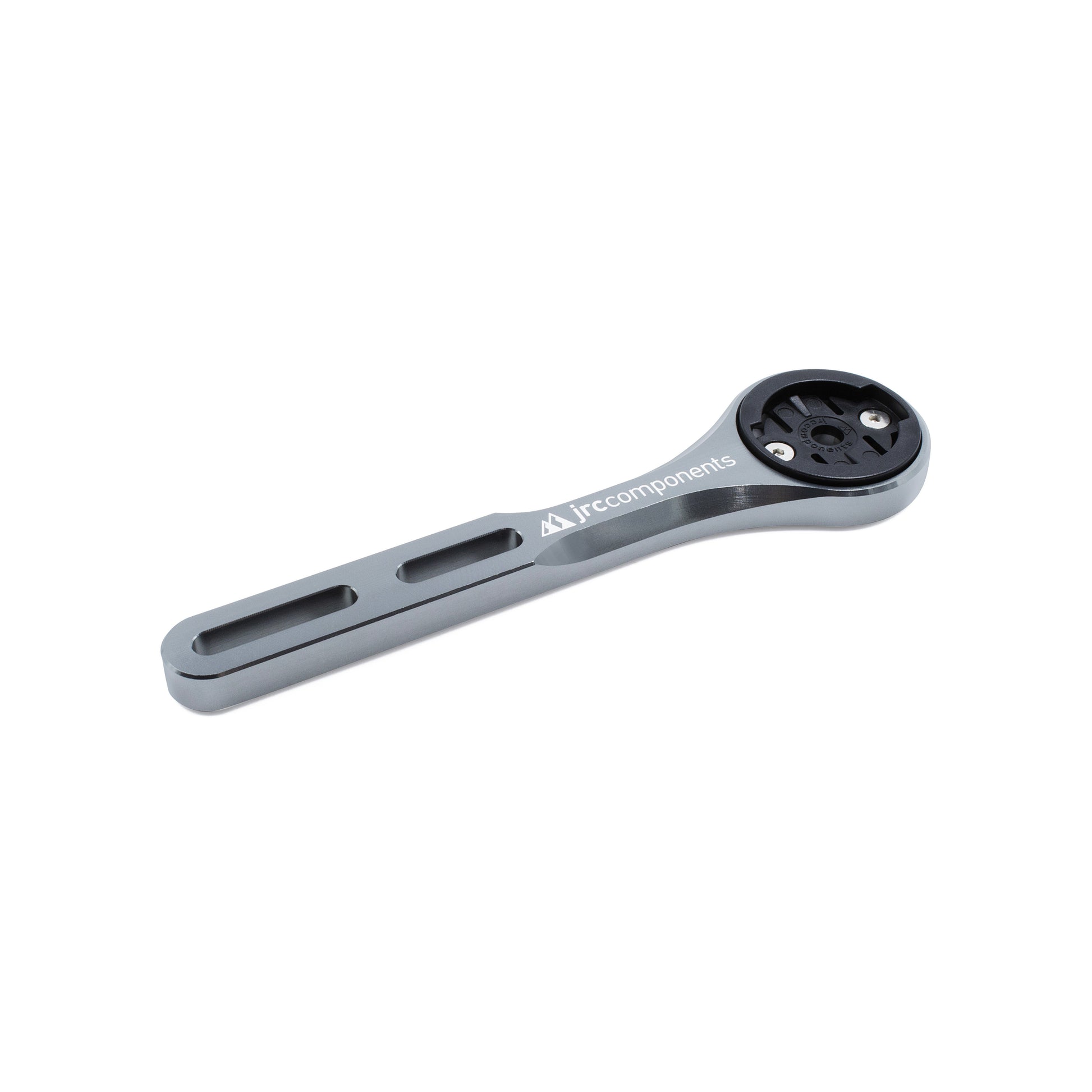

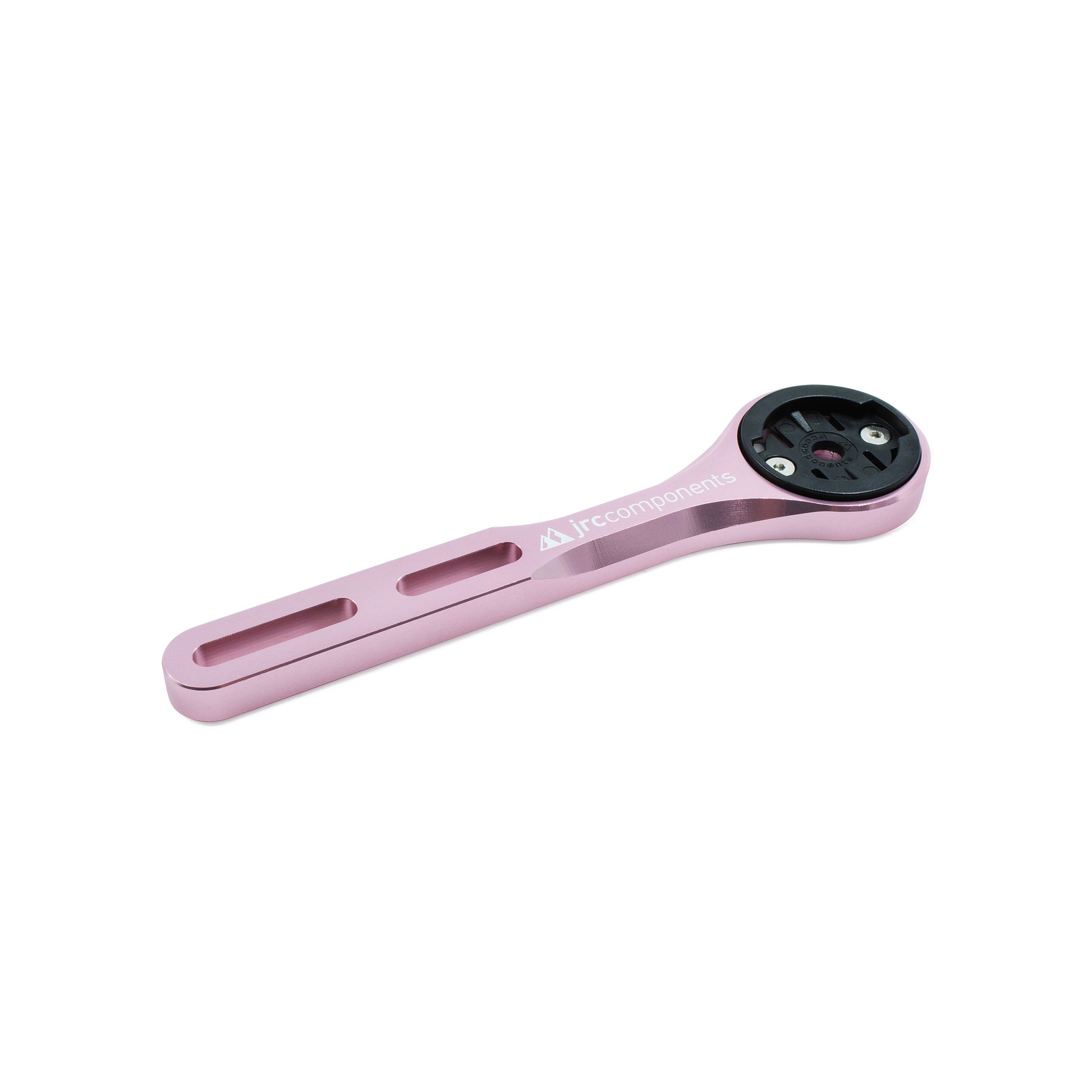

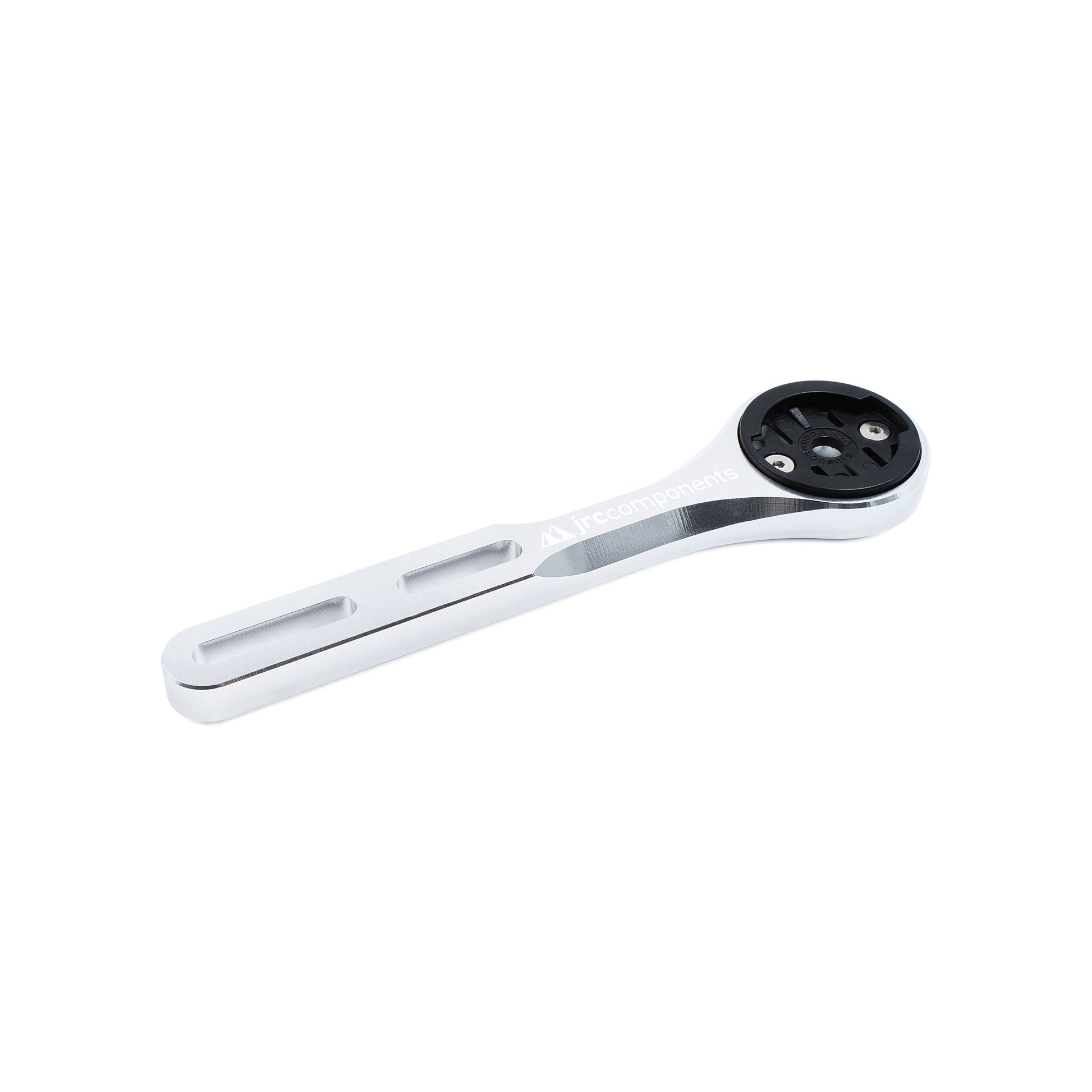

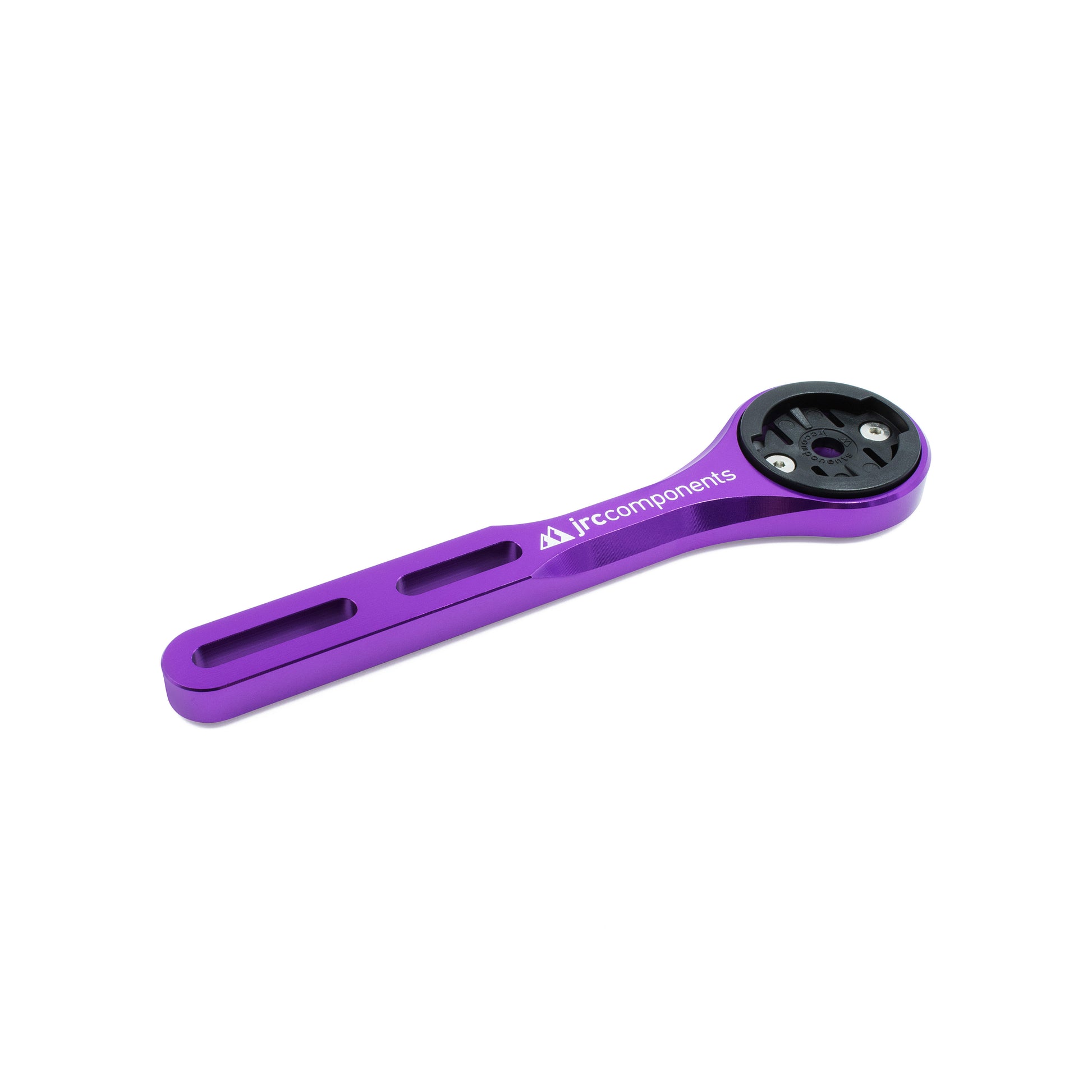

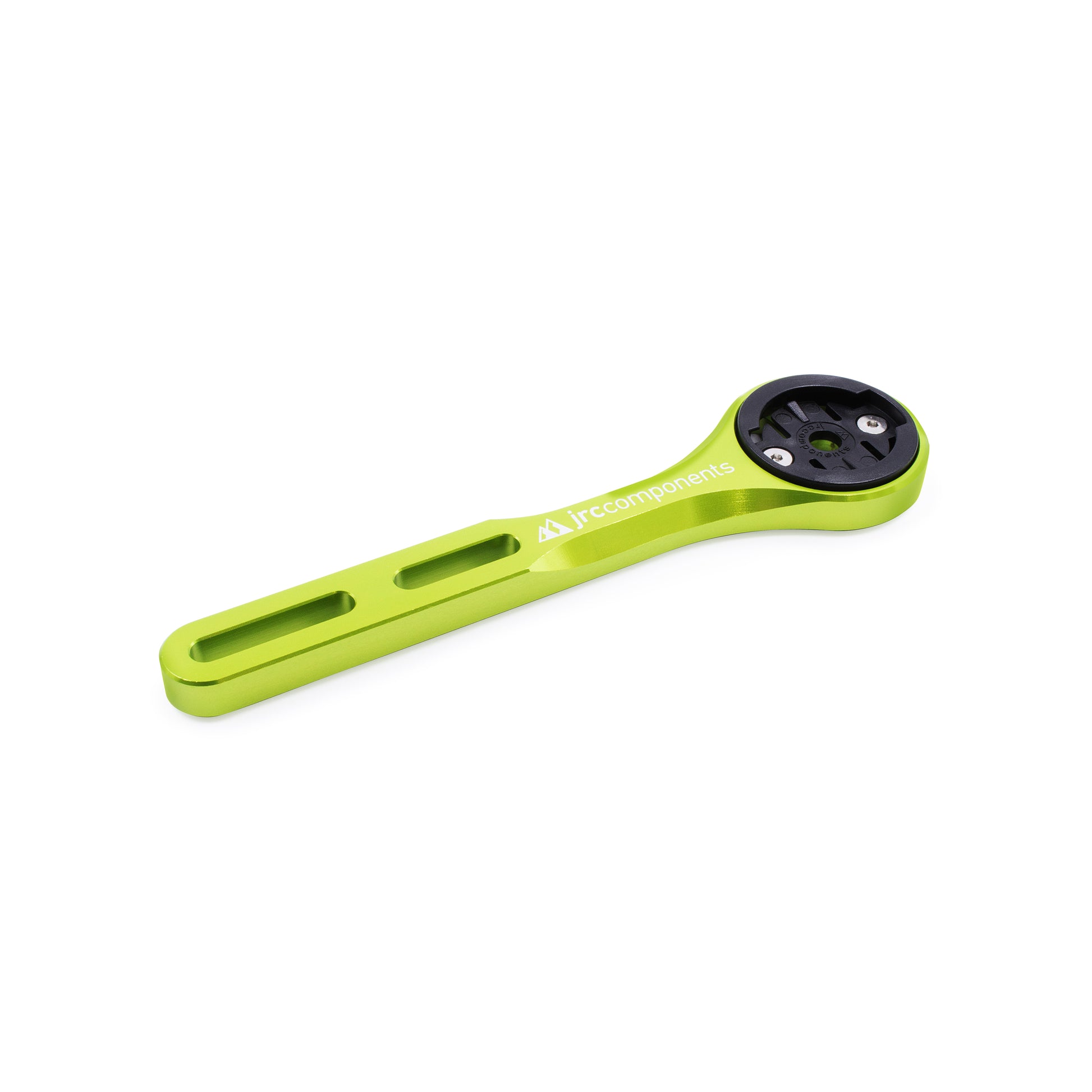

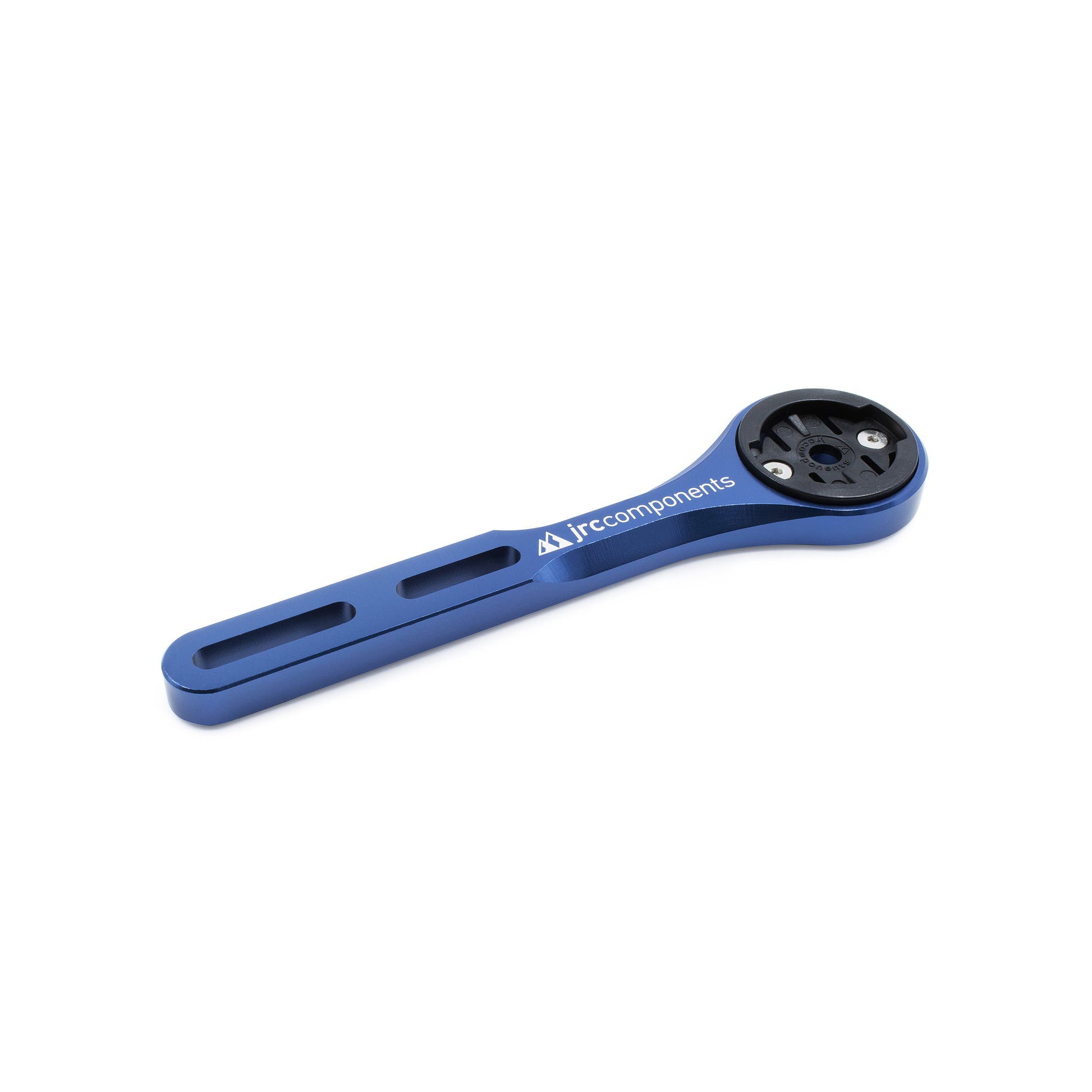

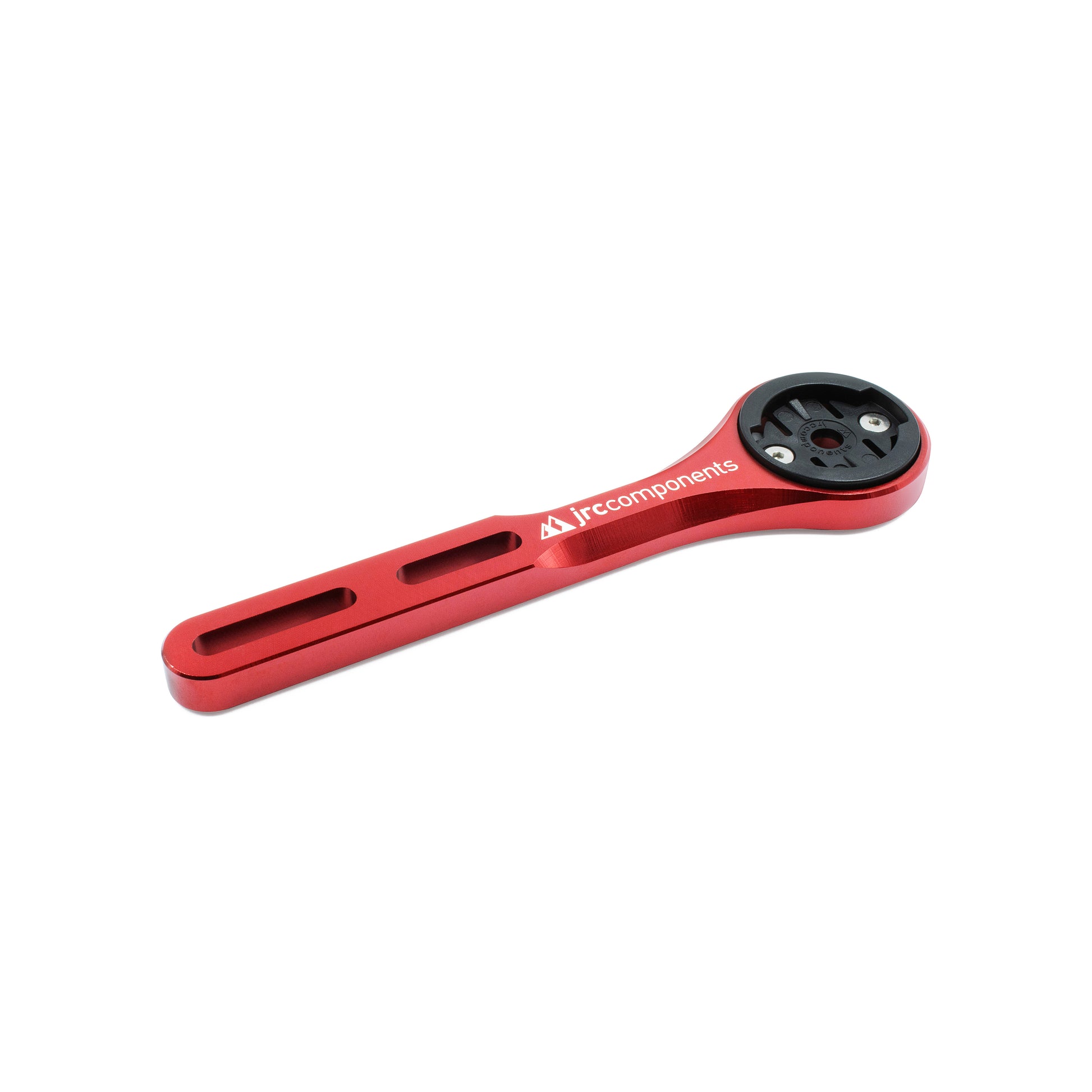

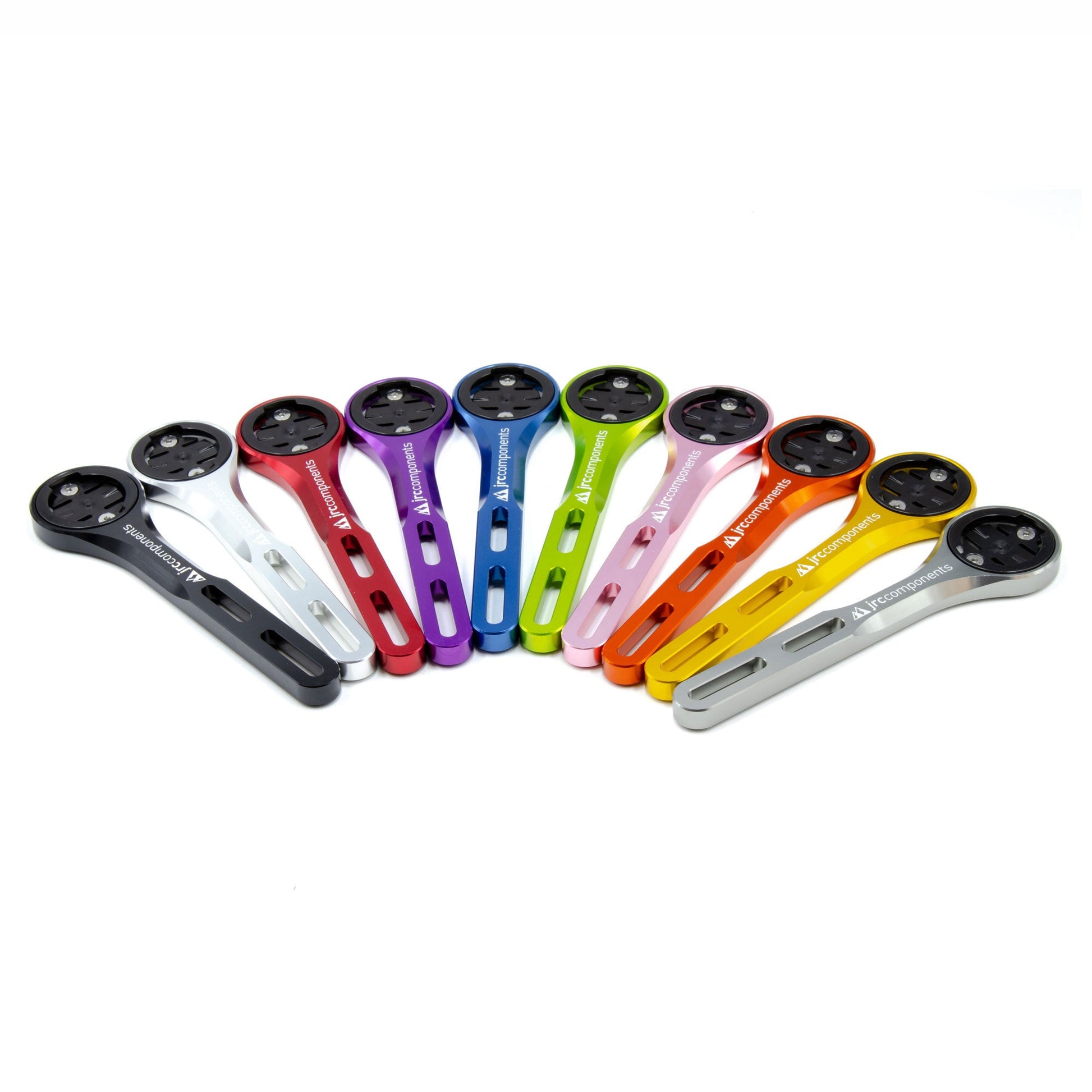

  • Available in 10 anodised colours

Compatibility:

The Amplitude Mount is compatible with most integrated bars which feature 2 flat, in-line bolt holes including PRO Stealth Evo, Canyon H31 and CP series(*), Ritchey Solostreem, Cinelli Ram 2, FSA Plasma, Most Talon, Argon 18 AHB5000, Syncros RR1.0 Carbon Aero(**) among many others.

*Please note H31 and CP handlebars are equipped with M4 bolt threads [rather than M5], meaning the original handlebar bolts will be required rather than those supplied

Furthermore, the mount does not support the Canyon CP0039 model.



**Only for the flat, inline models of RR1.0 bars

GPS Computer Compatibility:

  • Garmin Edge 20 / 25
  • Garmin Edge 130
  • Garmin Edge 200
  • Garmin Edge 500
  • Garmin Edge 510
  • Garmin Edge 520
  • Garmin Edge 530
  • Garmin Edge 800
  • Garmin Edge 540
  • Garmin Edge 810
  • Garmin Edge 820
  • Garmin Edge 830
  • Garmin Edge 840
  • Garmin Edge 1000
  • Garmin Edge 1030
  • Garmin Edge 1040

*Please note for use of our Amplitude Mount with Edge 1030 / 1040 devices, some handlebars may require using the rear slot to fasten both bolts to allow adequate clearance*



**Usage with 1030 and 1040 computers are only for mounts purchased from 18th Aug 2023 onwards, for mounts purchased prior to that date, the updated plastic insert can be purchased here to allow compatibility**

Mount Compatibility:

  • Widest bolt spacing (centre - centre) : 55mm
  • Narrowest bolt spacing (centre - centre) : 15mm
  • Rear Bolt to Plastic insert (centre - centre) : 125mm
  • This will enable compatibility with almost all integrated handlebars which have in-line bolts to be equipped with all standard GPS computers

Included:

  • 1x Amplitude Computer Mount
  • 2x M5 Mounting Bolts
  • 6x Bolt Spacers

Have you found what you are looking for?

  • Adaptor for GoPro/ front lights etc - specific to JRC Mounts
  • Amplitude Underbar Computer Mount for Wahoo GPS Computer

    • Can the Amplitude mount be used with a standard handlebar and stem? No, this mount is intended for an integral handlebar system and is attached to the two bolt holes under the stem.

    Is there a danger of the Amplitude mount bolts 'bottoming out' inside the stem? We have included 3x stainless steel washers for each mounting bolt to avoid this issue.

    What is the torque setting for the mounting bolts? The maximum permitted torque for the Amplitude mounting bolts is 3Nm.

    Can I replace the mount insert if I need to change my computer type? No problem. You can find the required insert for Garmin and Wahoo here: Plastic insert kit

    Is this mount compatible with the Hammerhead Karoo 1 or 2? It will fit, but requires an adaptor. These computers are heavy (especially the Karoo 1) and when used with their adaptor, sits in a raised position. This allows it to rock during use, increasing the likelihood of failure. Our mounts are not designed with either Karoo in mind and we will not stand over any that break while being used with a Karoo computer. If you still wish to go ahead and use a Karoo with one of our mounts we strongly recommend the use of a safety tether.

    Color B/W


    Aerodynamic Sophistication: Custom-Fit for Your Ride


    Elevate your cockpit's aesthetics and functionality with the Amplitude Computer Mount. This lightweight mount features a durable resin computer insert and weighs only 39 grams. Amplitude is adjustable for perfect fore-aft positioning, ensuring your GPS computer sits flush with your handlebars for optimal aerodynamics. Underbar positioning not only enhances your bike's performance but also gives it a sleek, customized look. Perfect for discerning cyclists who require both performance and style in their gear​​.

    Customer Reviews

    Based on 1 review
    0%
    (0)
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    V
    Valter Mário
    Very good Product, but don't fit Garmin 1030 for every handlebar

    For example for Willier Filante handlebar, with Garmin 1030 it doesn't fit.
    Anyway thanks for the quick shipment and good additional offers on the box.
